Steel structure floor roll forming lines

The steel structure floor roll forming lines include uncoiler car, uncoiler, feeding guide, main machine, roll forming cutter, automatic stacker, hydraulic system and electric control system.

Steel structure floor roll forming line
Steel structure floor roll forming line

MATERIAL:

(1) Suitable Coil Thickness 0.3 mm-1.0mm
(2) Coil Width: 800mm~1250 mm
(3) Suitable Raw Materials:Galvanized coil, Pre-painted Coil
(4) Yield bearing stress 235 MPa

MACHINE COMPONENTS:

(1) Hydraulic Un-coiler with coil car
(2) Raft style Roll-Forming M/C
(3) Hydraulic Cutting
(4) PLC Control System
(5) Line speed:40~60m/min
(6) Automatic Product Rack

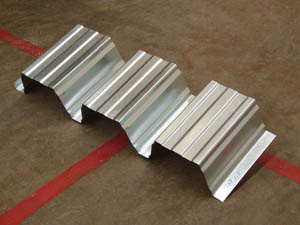

roll formed products
Model Coil width Thickness Effective width Profile drawing
GCT130-300-600 1000 0.8-1.2 600
GCT75-200-600 1000 0.8-1.2 600
GCT56-180-720 1000 0.4-0.6 720
GCT105-250-750 1250 0.72-1.0 750
GCT35-200-1000 1250 0.4-1.0 1000
GCT31-200-1000 1220 0.3-0.8 1050

construction drawing of glazed tile roll forming lines

Construction drawing of steel structure floor roll forming lines
