Pellet Press

Flat Die Pellet Press

The flat die pellet press is developed from flat die feed pelletizing machine. It is a small pellet press which can process oil cake and other mixed biomass material into granule at one time. The product is columned granule with slippery firm and it can be used to feed animal or burn as biofuel or wood pellets.

For feedstuff use:

During the process of producing feed pellets, the temperature of pellet press can reach 70-80 centigrade. At this temperature, fecula can be made into paste in pellet press. The inside granule is cooked fully, so the pellets will be not easy to go moldy and degenerative.This kind of cooked pellets can be stored for a long time and improve poultry dainty and assimilation function for feed animal. It also can shorten the period of feeding, so it can efficiently guarantee many users’productive cost.

For wood pellets or biomass pellets use:

This series flat die pellet presses can be used for producing wood pellets and biomass pellets, too. Wood pellets are made of all kinds of wood waste. Biomass pellets are made of peanut sheller, corn stalk and other biomass materials. In the process of making wood pellets, the lignin and resin of woods can serves as binder for pellet briquetting. If the material lack of resin, starch or sugar can be used as binder or it won’t form wood pellets by flat die pelleting press. In fact, this kind of small pellet press is very easy to operation if you master some important means to mix suitable materials. The small pellet press are very convenient for solving the wast of wood mills or agri-farm. The biofuel pellets produced by them can bring you a warm winner for fireplace or supply as fuel for cooking.

CE Series Pellet Press

Model Capacity Power Net Weight Outside Dimension
ZLSP D-Type 200 80-120kg/h 7.5kw 250kg 100*43*95cm
ZLSP D-Type 300 200-250kg/h 22kw 410kg 127*52*107cm

Pellet press with electric motor

flat die pellet press

Type

Power (Kw)

Capacity

Dimension (mm)

NG/GW
(kg)

Note

ZLSP D-Type 200B

3-phases 7.5kW

200-300

1000x430x950

200/230

With motor

ZLSP D-Type 200B

200-300

900x430x950



w/o motor

ZLSP D-Type 230B

3 phases 11kw

300-400

1140x470x970

290/320

With motor

ZLSP D-Type 230B

300-400

980x470x870



w/o motor

ZLSP D-Type 260B

3 phases 15kw

400-600

1200x500x1070

330/360

With motor

ZLSP D-Type 260B

400-600

1120x490x1070



w/o motor

ZLSP D-Type 300B

3 phases,22kW

700-800

1270x520x1070

410/450

With motor

ZLSP D-Type 300B

700-800

1170x520x1070



w/o motor

ZLSP D-Type 360

3-phases 22kW



1270x520x1070

470/500

With motor

ZLSP D-Type 360



1270x520x1070



w/o motor

ZLSP D-Type 400

3 phases,30KW

900-1100

1470x600x1150

550/585

With motor

ZLSP D-Type 400

900-1100

1470x600x1150



w/o motor

Pellet press with diesel motor

Pellet-press-with-diesel-motor
Pellet press with diesel motor

Type

Power (Kw)

Capacity

Dimension (mm)

NG/GW
(kg)

Note

ZLSP D-Type 200A

15hp diesel

200-300

1000×460×900

210/240

With diesel

ZLSP D-Type 200A

200-300

1000×460×900



w/o diesel

ZLSP D-Type 230A

22Hp diesel

300-400

1180x560x1020

280/310

With diesel

ZLSP D-Type 230A

300-400

1090x520x820



w/o diesel

Smallest pellet press

All models above can process both animal feedstuff and wood pellet from sawdust. If you only use the machine to produce feedstuff, there are four smaller models for your reference as follows:

 pellet press for sale
smallest pellet press
Small pelletpress
ZLSP D-Type 120
ZLSP D-Type 150
ZLSP D-Type 120A/ZLSP D-Type 150A

Type

Power (Kw)

Capacity

Dimension (mm)

NG/GW
(kg)

Note

ZLSP D-Type 120

3kw 3-phases or 2.2 kw single phase

75-100

710x390x910

80/100

With motor

ZLSP D-Type 120

75-100

670x390x910



w/o motor

ZLSP D-Type 120A

8hp diesel

75-100

730x320x670



w/o diesel

ZLSP D-Type 120A

75-100

900x440x730

120/140

With diesel

ZLSP D-Type 150

4kw 3-phase

90-120

750x350x650

95/115

With motor

ZLSP D-Type 150

90-120

700×350×650



w/o motor

die and roller of pellet mill

Note:

  • The above capacity is for feedstuff.
  • If clients use this machine to produce wood sawdust, the capacity will reduce 50%-60% of original capacity.

R type and D type of flat die pellet press

Our pellet press can be divided into R type and D type. R type is called rotating roller type, and D type is called rotating die type. Main differences between R type and D type are the motion pattern of die and roller, R type is the upgrade version of D type, so the price of R type is higher than that of D type

Ring Die Pellet Mill

Our Ring Die Pellet Mill is for middle or big sized pelletizing plant. The working principle of ring die pellet mill is as the following:

ring die pellet mill for sale

Model Capacity (kg/h) Power (kw) Dimension (mm) Weight (kg)
BPM350 500~800kg/h 30*2+0.75+0.75kw 2150*1950*1900mm 2200kg
BPM420 1000~1500kg/h 90+1.5+2.5kw 2500*1100*1900 3000kg
BPM508 1500~2000kg/h 110+1.5+2.2kw 2800*1100*1900 3700kg
BPM510 1500~3000kg/h 90+1.5+2.2kw 1200*2900*2000 3200kg

The process of pelleting consists of forcing a soft material through holes in a metal die plate to form compacted pellets which are then cut to a pre-determined size. The machinery related pellet press which has been developed for this purpose is very diverse in design now. There is much controversial point between different pellet press manufacturers on which type of pellet mill is the most effective. Now, most ring die pellet mills have one or more conditioning units mounted above them where liquids such as water can be added to improve pelletability. The water is sometimes added in the form of steam, resulting in firmer pellets produced.

Usually the ring die plate rotates itself, and on its outer-side stationary knives cut the pellets to a pre-set length. From there, they are transferred to a cooler or drier to remove the heat generated during the pelleting process or added during steam conditioning. The moisture content of the pellets also needs to be reduced for better storage after processing by ring die pellet mill.

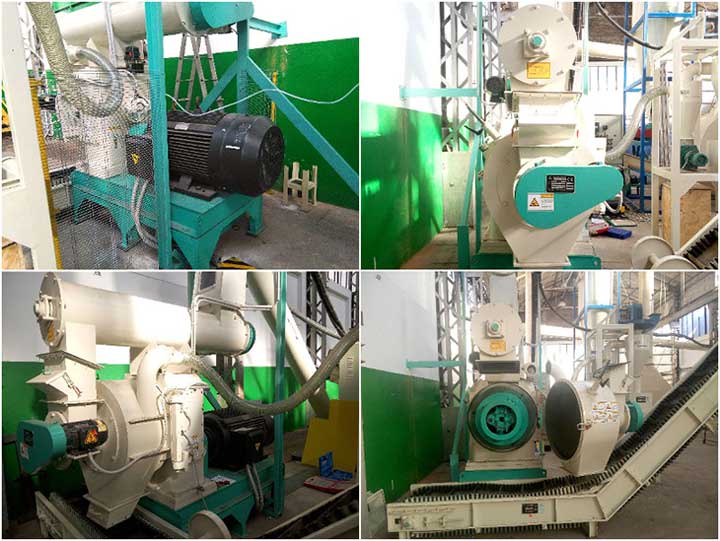

ring die wood pellet making machine
