Roof & wall panel roll form machine

This product is widely used in many kinds of industrial factory, civilian buiding, and wall board for easy steel house. It has advantage of pretty appearance, durable using and so on.

This machine is composed of deed leading tavle,main roll form machine, cutting device, hydraulic station, computer control system and so on.

Roof wall panel roll form machines

Production Introduction of Roof & Wall Panel Roll form Machine

The line is composed by loading car, uncolier, guiding & feeding device, roll forming machine, cutter, automatic stacker, hydraulic system, electric control system.

The roof panel & shingle nail rollforming line is an updated version of traditional roll form machine. Instead of using screws at joining position, the corrugated sheets produced by this line are Self-locked and have successfully solved the problem of leakage.

Roof and wall panel roll form machine sample
working room

Roof & wall panel roll form machine

Model Coil width Thickness Effective width Profile drawing
GCT28-205-820 1000 0.4-0.6 820
GCT25-210-840 1000 0.4-0.6 840
GCT30-200-1000 1220 0.4-0.6 1000
GCT28-200-1000 1250 0.3-0.7 1000
GCT25-205-1025 1200 0.3-0.7 1025
GCT30-350-1050 1200 0.3-0.7 1050
GCT66-394-788 1000 0.4-0.8 788

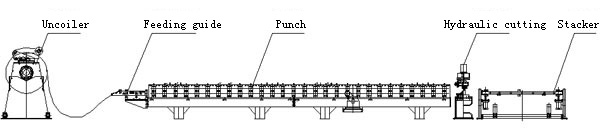

construction drawing of roof and wall panel roll form machine
